Toshiba TLX9188 Transistor Output Optocoupler

Toshiba TLX9188 Transistor Output Optocoupler incorporates phototransistors optically coupled to an infrared LED, enclosed in a small, thin SO6 (4pin) package. The TLX9188 features a high breakdown voltage between the collector and emitter (VCEO=200V) and operates at a high (Ta=125°C max) temperature. The TLX9188 is ideal for battery management systems and HEV (Hybrid Electric Vehicle) and EV (Electric Vehicle) applications.

Features

  • 200V (min) Collector-emitter voltage
  • Current transfer ratio of 50% (min) to 600%(max)
    • Rank GB of 100% (min) to 600%(max)
  • 3750Vrms (min) Isolation voltage
  • -40°C to 125°C Operating temperature
  • AEC-Q101 qualified

Applications

  • HEV (Hybrid Electric Vehicle) and EV (Electric Vehicle)
  • Battery Management Systems (BMS)

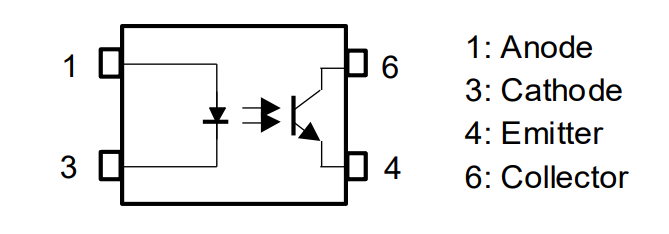

Pin Configuration

Toshiba TLX9188 Transistor Output Optocoupler

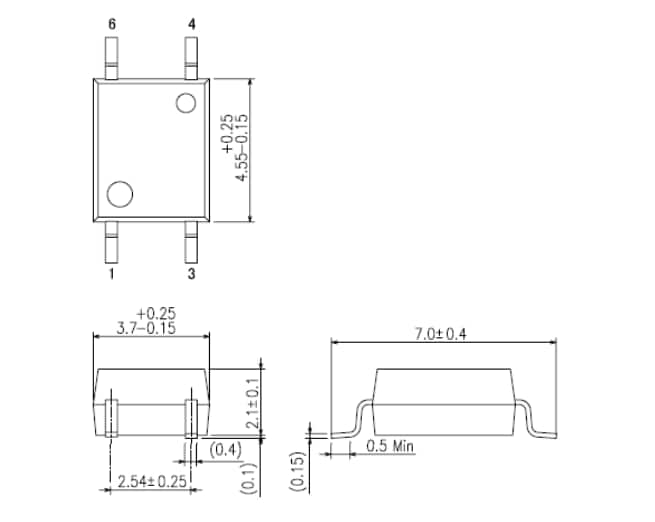

Dimensions mm

Mechanical Drawing - Toshiba TLX9188 Transistor Output Optocoupler
