Swissbit Industrial SD & microSD Memory Cards
Swissbit Industrial SD and microSD Memory Cards memory cards are ideal for industrial applications, ranging from read only applications as in navigation systems to utilization as boot media, for video recording, or data logging. Swissbit Industrial SD and microSD Cards are designed for high sustained performance and endurance and are manufactured and tested to withstand extreme environmental conditions.
The SLC (Single Level Cell) based SD and microSD Cards offer the best sequential performance and highest endurance. Sub-page based firmware, known as durabit™ and everbit™, enables unprecedented endurance and random write performance for the MLC (Multi Level Cell) and pSLC (Pseudo Single Level Cell) SD and microSD Cards.
Features
- Autonomous data care management
- Industrial-grade SD and microSD cards
- Single-level cell (SLC) or multi-level cell (MLC) types
- Power fail protection
- Read disturb management
- Sophisticated wear leveling and bad block management
- SBLTM tool and SDK for detailed life time monitoring available on request
- TS16949 certified production line
- Chip on board design for highest robustness
- Frozen BOM and PCN process
Applications
- Read-intensive industrial applications
- Navigation
- Infotainment
- POS and POI systems
- Data logging
- General boot media
S-220 Series SD
S-220 Series SD
SPI, SDHC compliant, class 6 and 10 compliant, offered in 4GB and 8GB
S-46 Series SD
S-46 Series SD
SD/SDHC/SDXC 3.0, UHS-I, pSLC NAND Flash with everbit™ Reduced Write Amplification, offered in 2GB, 4GB, 8GB, 32GB, and 64GB
S-45 Series SD
S-45 Series SD
SDHC/SDXC, UHS-I, MLC NAND Flash with durabit™ Technology, offered in 4GB, 8GB, 16GB, 32GB, 64GB, and 128GB
S-450 Series SD
S-450 Series SD
SD/SDHC, UHS-I, SLC NAND Flash, offered in 512MB, 1GB, 2GB, 4GB, 16GB, and 32GB
S-455 Series SD
S-455 Series SD
SD/SDHC, UHS-I, SLC NAND Flash, offered in 512MB, 1GB, 2GB, 4GB, 16GB, and 32GB
S-455u Series microSD
S-455u Series microSD
microSD/microSDHC, UHS-I, SLC NAND Flash, offered in 512MB, 1GB, 2GB, 4GB, and 8GB
S-46u Series microSD
S-46u Series microSD
microSD/microSDHC, UHS-I, pSLC NAND Flash, offered in 2GB, 4GB, 8GB, 16GB, 32GB, and 64GB
S-45u Series microSD
S-45u Series microSD
microSD/microSDHC, UHS-I, MLC NAND Flash with durabit™ Technology, offered in 4GB, 8GB, 16GB, 32GB, 64GB, and 128GB
S-450u Series microSD
S-450u Series microSD
microSD/microSDHC, UHS-I, SLC NAND Flash, offered in 512MB, 1GB, 2GB, 4GB, and 8GB
SD Comparison Chart

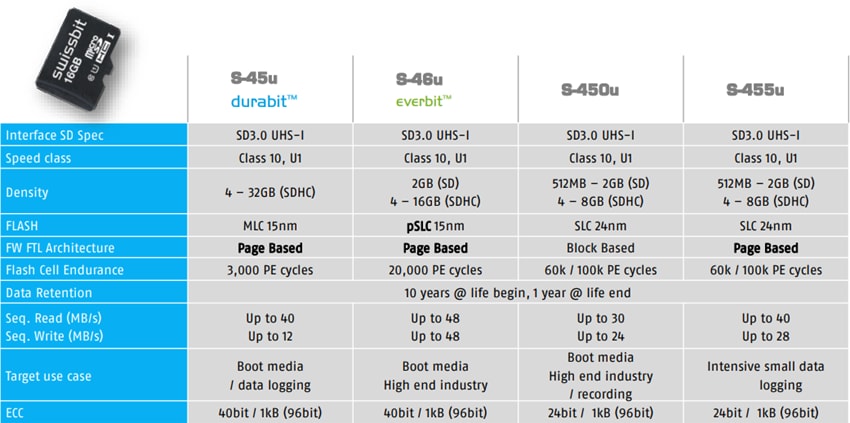

microSD Comparison Chart
