STMicroelectronics STM32G4 Mixed-Signal Microcontrollers (MCUs)
STMicroelectronics STM32G4 Mixed-Signal Microcontrollers (MCUs) combine a 32-bit Arm® Cortex®-M4 core (with FPU and DSP instructions) running at 170MHz. This is combined with three hardware accelerators: ART Accelerator™, CCM-SRAM routine booster, and mathematical accelerators. A flexible interconnect matrix allows autonomous communication between peripherals and saves CPU resources and power consumption. A high degree of compatibility with the STMicroelectronics STM32F3 Series guarantees outstanding efficiency when designing derivatives of applications at different performance levels.
Features
- Arm Cortex-M4 (DSP + FPU) 170MHz processor
- ART Accelerator™
- Math Accelerator
- Dual-Bank Flash Memory with Error-Correcting Code (ECC)
- Parity bit on SRAM
- Securable memory area
- Quad SPI
- CAN-FD
- USART, SPI, I2C, SAI
- ADC with Hardware oversampling (16-bit resolution)
- Advanced motor control timers
- Multiple DMA and DMAMUX
- Integrated regulator PLL and clock circuit
- Temperature sensor
- Vbat Mode
- USB Type-C™ interface with power delivery, including physical layer (PHY)
- AES hardware encryption

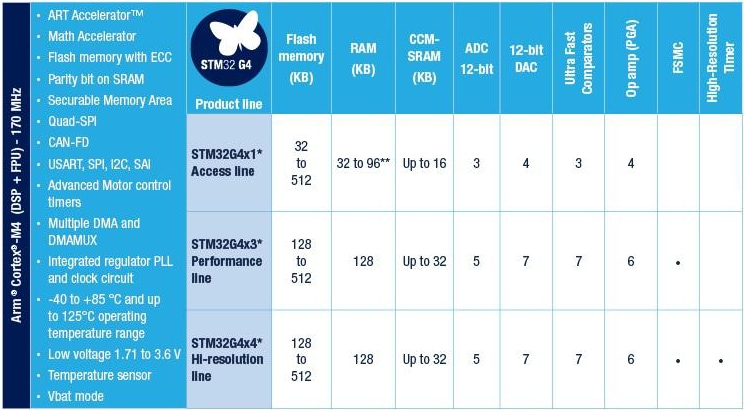

Options
Note: * HW crypto/hash functions are available on STM32G441 and STM32G483/484
Associated Products
STMicroelectronics STM32 32-Bit Arm® Cortex®-M MCUs
Based on the Arm® Cortex®-M processor and are designed to offer new degrees of freedom to MCU users.
STMicroelectronics STSPIN32G4 Motor Controllers with STM32G4 MCU
Highly integrated and flexible devices for driving 3-phase brushless motors.
Development Tools
STMicroelectronics STEVAL-CTM014A Reference Design
Designed to drive a 3-phase brushless DC motor up to 700W, typically of a washing machine appliance.
STMicroelectronics EVLGANSPIN1-3PH Reference Design Board
Based on the GANSPIN611 half-bridge GaN system-in-package & the STM32G431RB with Arm Cortex-M4 MCU.
STMicroelectronics STEVAL-SILKT01 Evaluation Kit
Contains one motherboard STEVAL-SILKTA01 and two daughter boards STEVAL-SILKTB01 (actuation board).
STMicroelectronics EVSPIN32G4 Demonstration Board
Integrates a triple high-performance half-bridge gate driver and one mixed-signal STM32G431 MCU.
STMicroelectronics NUCLEO-G431RB STM32G4 Nucleo-64 Board
Affordable & flexible way for users to try out new concepts & build prototypes with STM32G4 MCUs.
STMicroelectronics STM32G0316-DISCO Discovery Kit
Helps to discover features of the STM32G0, an Arm® Cortex® M0+ core-based MCU in a SO-8 package.
STMicroelectronics NUCLEO-G031K8 STM32G0 Nucleo-32 Board
An affordable way to try out new ideas and build prototypes using the STM32G031K8 MCU.
STMicroelectronics B-G431B-ESC1 Discovery Kit
Based on the STM32G431CB microcontroller, the L6387 driver and STL180N6F7 power MOSFETs.
STMicroelectronics STEVAL-DPSG474 Digital Power Supply Control Kit
Includes the mainboard, based on the STM32G474RE microcontroller, and an adapter board.
STMicroelectronics STM32G474E‑EVAL Evaluation Board
Used to demonstrate and develop the STM32G474QET6 microcontroller.
STMicroelectronics B-G474E-DPOW1 Discovery Kit
Built with the STM32G474RE Arm® Cortex®-M4 core-based microcontroller.
STMicroelectronics STEVAL-TTM005A Resolver Board
Specifically designed for developing and testing automotive motor control applications.
STMicroelectronics STEVAL-DPSG474Q Digital Power Supply Control Board
Board is based on the STM32G474QE microcontroller from the STM32G4 series.
