ROHM Semiconductor SML-D13x Mini-Mold Chip LEDs

ROHM Semiconductor SML-D13x Mini-Mold Chip LEDs are based on original device technology that enables high brightness and reliability. These ROHM Semiconductor SML-D13x LEDs are available in yellow-green, orange, red, and green variants with a luminous intensity rating from 20mcd to 120mcd. The SML-D13x LEDs operate at 20mA forward current, 2V/2.1V forward voltage, and 5V reverse voltage. These SML-D13x LEDs are available in 1.6mm x 0.55mm x 0.8mm dimensions with a 0603 package.

Features

  • Original device technology enables high brightness and high reliability
  • 20mA forward current
  • 2V/2.1V forward voltage
  • 5V reverse voltage
  • 1.6mm x 0.55mm x 0.8mm dimensions
  • Luminous intensity rating
    • 20mcd, 45mcd, 55mcd, 85mcd, and 120mcd
  • Wavelength temperature range
    • 564.5nm, 571nm, 605nm, 620nm, and 630nm
  • Illumination color
    • Yellow-green, orange, green, and red

SML-D13x LEDs Dimensions

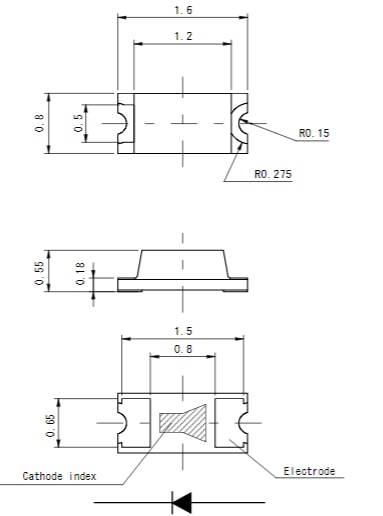

Mechanical Drawing - ROHM Semiconductor SML-D13x Mini-Mold Chip LEDs

Learn More About

Additional Resources

View Results ( 5 ) Page
Part Number Datasheet Description Wavelength/Colour Temperature Luminous Intensity Illumination Colour If - Forward Current Vf - Forward Voltage
SML-D13DWT86A SML-D13DWT86A Datasheet Single Colour LEDs Org 605nm 120mcd 0603/1608 30mA 605 nm 120 mcd Orange 20 mA 2 V
SML-D13FWT86 SML-D13FWT86 Datasheet Single Colour LEDs MINI-MOLD SMD LED GREEN 564.5 nm 22 mcd Green 20 mA 2.1 V
SML-D13MWT86A SML-D13MWT86A Datasheet Single Colour LEDs Yel/Grn 571nm 45mcd 0603/1608 30mA 571 nm 45 mcd Yellow-Green 20 mA 2.1 V
SML-D13UWT86A SML-D13UWT86A Datasheet Single Colour LEDs LED UNI-COLOR RED CHIP 620 nm 85 mcd Red 20 mA 2 V
SML-D13VWT86A SML-D13VWT86A Datasheet Single Colour LEDs Red 630nm 55mcd 0603/1608 30mA 630 nm 55 mcd Red 20 mA 2.2 V
Published: 2018-08-15 | Updated: 2023-03-30
