Renesas Electronics 55xS Low Skew 1 to 4 Clock Buffers

Renesas Electronics 55xS Low Skew 1 to 4 Clock Buffers are low skew, a single high-speed input to four output clock buffers. These devices feature an additive phase jitter of sub 50fs and input/output clock frequency up to 200MHz, making them ideal for networking clocks. Renesas Electronics 55xS Low Skew 1 to 4 Clock Buffers are offered in an 8-pin SOIC or 8-pin DFN package and have an extended temperature range of -40°C to +105°C.

Features

  • 50fs low additive phase jitter RMS
  • Extremely low skew outputs (50ps)
  • Packaged in 8-pin SOIC or small 8-pin DFN
  • Input/output clock frequency up to 200MHz
  • Ideal for networking clocks
  • 1.8V to 3.3V operating voltages
  • Output enable mode tri-states outputs
  • Advanced, low-power CMOS process
  • -40°C to +105°C temperature range
  • Pb free

Block Diagrams

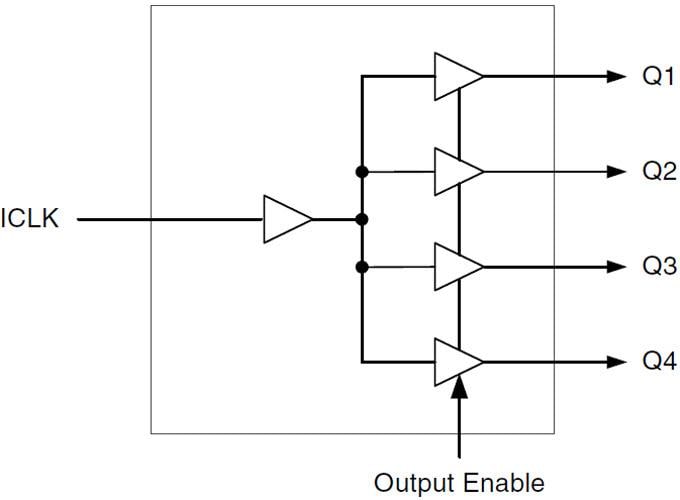

Block Diagram - Renesas Electronics 55xS Low Skew 1 to 4 Clock Buffers
Block Diagram - Renesas Electronics 55xS Low Skew 1 to 4 Clock Buffers
View Results ( 9 ) Page
Part Number Datasheet Description Package/Case Packaging
551SCMGI8 551SCMGI8 Datasheet Clock Buffer Low Skew 1 to 4 50fs 50ps 200 MHz Reel
551SCMGI 551SCMGI Datasheet Clock Buffer Low Skew 1 to 4 50fs 50ps 200MHz DFN-8 Cut Tape
551SDCGI8 551SDCGI8 Datasheet Clock Buffer Low Skew 1 to 4 50fs 50ps 200 MHz Reel
551SPGGI8 Clock Drivers & Distribution 551S MIXED SIGNAL Reel
553SDCGI8 553SDCGI8 Datasheet Clock Buffer Low Skew 1 to 4 50fs 50ps 200 MHz Reel
551SDCGI 551SDCGI Datasheet Clock Buffer Low Skew 1 to 4 50fs 50ps 200MHz SOIC-8 Tube
553SCMGI 553SCMGI Datasheet Clock Buffer Low Skew 1 to 4 50fs 200MHz 3.465V DFN-8 Cut Tape
553SCMGI8 553SCMGI8 Datasheet Clock Buffer Low Skew 1 to 4 50fs 50ps 200 MHz Reel
553SDCGI 553SDCGI Datasheet Clock Buffer Low Skew 1 to 4 50fs 200MHz 3.465V SOIC-8 Tube
Published: 2015-04-07 | Updated: 2023-10-02
