Nexperia FR2M Fast Recovery Rectifier
Nexperia FR2M Fast Recovery Rectifier is a 1000V, 2A rectifier with high forward surge capability. This rectifier features a glass passivated chip junction and is ideal for automated placement. The FR2M rectifier offers a fast recovery time of ≤500ns and is encapsulated in an SOD1002-1 SMB package. This rectifier offers a storage temperature range of -55°C to 150°C. The FR2M fast recovery rectifier is used in rectification, reverse polarity protection, and freewheeling applications.
Features
- ≤1000V reverse voltage (VR)
- ≤2A forward current (IF)
- ≤500ns hyperfast recovery time (trr)
- 10pF diode capacitance (Cd)
- Platinum (Pt) doped lifetime control
- -55°C to 150°C storage temperature range
- Ideal for automated placement
- Glass passivated chip junction
- High forward surge capability
- SOD1002-1 SMB package
Applications
- Rectification
- Reverse polarity protection
- Freewheeling

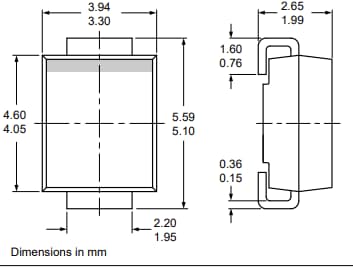

Package Outline
