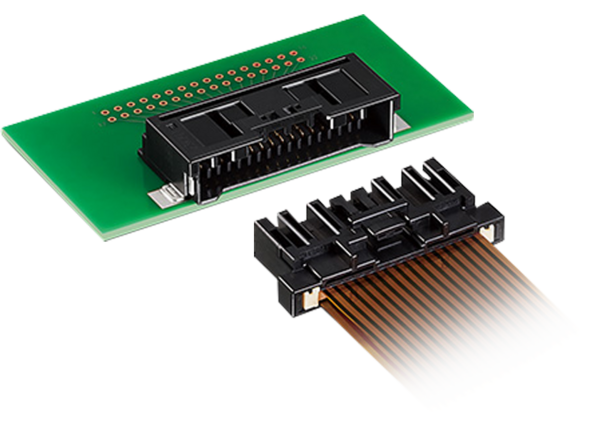

Hirose Electric ZK1 Automotive FPC-to-Board Connectors
Hirose Electric ZK1 Automotive FPC-to-Board Connectors are designed for environments where safety, reliability, and high heat resistance are essential. These connectors feature a 2mm pitch/1mm PCB pitch, up to +125°C heat resistance, vibration durability, and a terminal-less plug design. ZK1 connectors use a two-point contact design that enhances dust resistance, ensuring high contact reliability. The safety-first design includes electric shock prevention, guarding against terminal exposure and accidental contact. Hirose Electric ZK1 Connectors offer a compact, lightweight design, reducing size and weight in automotive applications.
Features
- Two-point contact design
- Dust resistant
- High contact reliability
- Safety-first design
- Electric shock prevention
- Simplified assembly
- Terminal-less plug design
- Compact, lightweight design
Applications
- Automotive
- Batteries
- High-heat environments
- Harsh environments
Specifications
- 2mm FPC pitch/1mm PCB pitch
- Up to +125°C temperature resistance
- 1A rated current
- 50VAC/DC rated voltage
- 1000VAC withstanding voltage for 1 min.
- 100MΩ minimum insulation resistance
- -40°C to +125°C operating temperature range

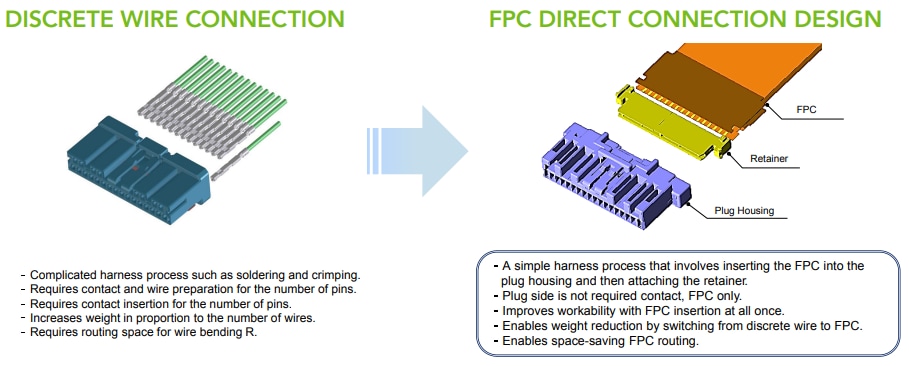

Connection
