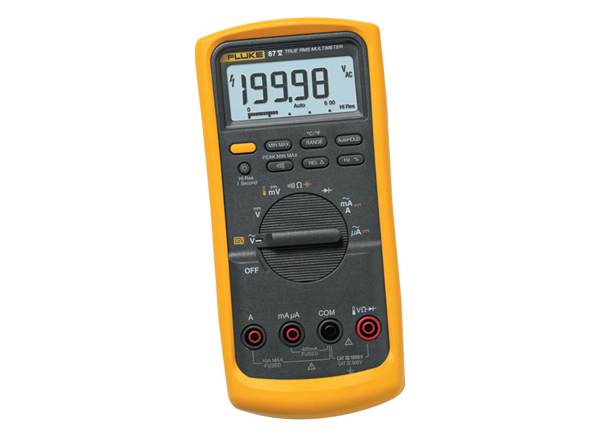

Fluke 87V Digital Multimeters
Fluke 87V Digital Multimeters provide the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment in loud, high-energy, and high-altitude locations. These 87V digital multimeters support accurate measurements on variable-frequency drives (VFDs) using a low-pass filter. These multimeters also capture intermittents as fast as 250µS with peak capture, while specially designed shielding blocks the high-frequency, high-energy noise generated by large drive systems. The Fluke 87V series provides 6000 counts, 3¾ digit resolution, or 20,000 counts, 4½ digit resolution. The devices comes with a lifetime warranty.
Features
- Identifies complex electrical problems quickly
- Supports accurate measurements on VFDs using low-pass filter
- Captures intermittents as fast as 250µS with peak capture
- Blocks high-frequency, high-energy noise generated by large drive systems with specially designed shielding
- Removable holster with built-in test lead and probe storage for convenience
- Holds probe during testing for easier viewing
- Offers relative mode to remove test lead interference from low ohms measurements
- Improves accuracy of low-resistance measurements
- Safety features
- All inputs updated to the 3rd edition of the EN 61010-1 to 1000V CAT III and 600V CAT IV
- Designed to withstand spikes of more than 8000V
- Audible input alert warning against wrong use of input jacks
- Additional tool features
- Easy access door for fast battery changes without breaking calibration seal
- Resolution
- 6000 counts, 3¾ digit resolution
- 20,000 counts, 4½ digit resolution
- Fits into optional magnetic hanger for easy setup and viewing
- Includes analog bar graph for fast-changing or unstable signals
- Large digit display with bright, 2-level backlight for easier reading in low light
- Delivers 0.05% DC accuracy
- Provides 10,000µF capacitance range for components and motor caps
- Auto and manual ranging for maximum flexibility
- Holds readings on display for safe viewing after removing probes using touch hold technology
- Lfetime warranty
Specifications
- 1000VDC/VAC maximum voltage
- 10A maximum current
- 50MΩ maximum resistance
- 9999µF maximum capacitance
- 200kHz maximum frequency
- 99.9% maximum duty cycle
- 2000m operating altitude
- -20°C to +55°C operating temperature range
- EN 61010-1 to 1000V CAT III, 600V CAT IV overvoltage category
Videos
Display Features
Published: 2020-01-27
| Updated: 2024-04-12
