Diodes Incorporated DXTP80x PNP Bipolar Transistors
Diodes Incorporated DXTP80x PNP Bipolar Transistors offer a small form factor, thermally efficient PowerDI® 3333-8 package, allowing higher-density end products. The devices supply a >-30V, -60V, or -100V collector-emitter voltage and a >-8V emitter-base voltage. The DXTP80x is ideal for high-temperature environments, with a temperature rating of +175°C. The Diodes Inc. PNP bipolar transistors are excellent for motors, solenoids, relays, and actuator driver controls.
Features
- BVCEO >-30V, -60V, or -100V
- BVEBO >-8V
- Continuous current IC from -4A to -7.5A
- Peak pulse current ICM to -10A to -14A
- Ultra-low saturation voltage VCE(sat) <-35mV at -1A, <-50mV at -1A, or <-70mV at -1A
- High current RCE(sat) = 13mΩ, 26mΩ, or 40mΩ typical
- Small form factor thermally efficient package enables higher density end products
- Wettable flank for improved optical inspection
- Rated to +175°C - ideal for high-temperature environments
- Lead-free finish; RoHS compliant
- Halogen and antimony-free - “Green” device
Applications
- MOSFET and IGBT gate drivers
- Load switches
- Low-voltage regulation
- DC to DC converters
- Motors, solenoids, relays, and actuator driver controls
Specifications

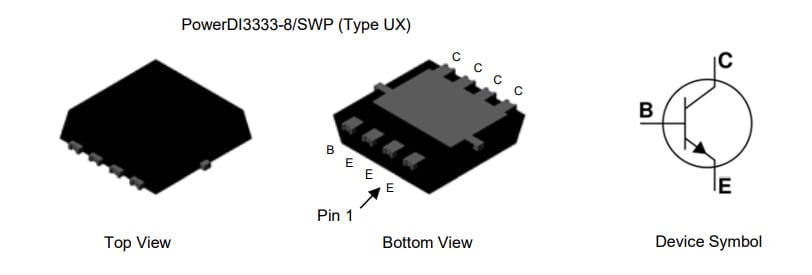

- PowerDI 3333-8 package
- Package material of molded plastic, “Green” molding compound, UL flammability rating 94V-0
- Moisture sensitivity of Level 1 per J-STD-020
- Finish - matte tin terminals, solderable per MIL-STD-202, Method 208
