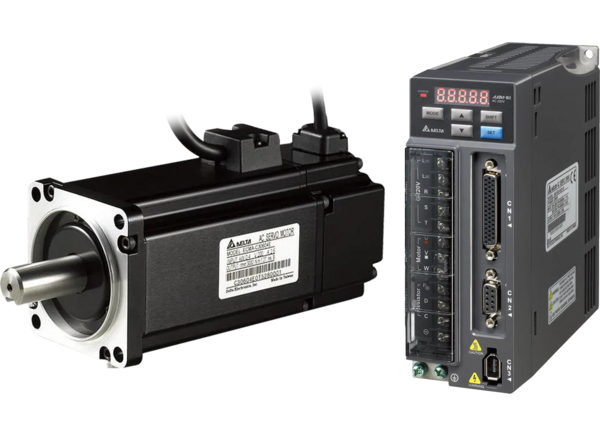

Delta Electronics ASDA-B2 AC Servo Motors & Drives

Delta Electronics ASDA-B2 AC Servo Motors and Drives are designed to meet the requirements for general-purpose machine control applications in industrial automation while enhancing the competitive advantage of servo systems. The ASDA-B2 series focuses on built-in motion control functions for general-purpose applications, saving the cost of mechatronics integration. Delta Electronics ASDA-B2 AC Servo Motors and Drives help make setting assembly, wiring, and operation convenient. These high-performance, cost-effective devices offer a power rating range of 0.1kW to 3kW and meet UL, cUL, CE, and RoHS standards. Typical applications include lathe and milling machines, transport and conveying equipment, and more.

Features

0.1kW to 3kW power rating range
High-speed differential command (up to 4Mpps)
Implements high-precision positioning control
- Supports 20-bit and 17-bit encoders, satisfies demand for high-precision positioning control and stable operation with lower speed
- Applying encoder with higher resolution can reduce cogging torque and improve motor precision
Fulfills easy-to-use requirements for versatile operation
- User-friendly motor sizing software allows users to select motor
- ASDA-soft configuration software (tuning software) provided to meet performance requirements quickly
- Easy-to-use digital keypad ideal for setting parameters and enables users to directly monitor servo drive and servo motor

Easy-to-install solution for simple start-up
- Shares same power cables and encoder cables for easy installation and setup without extra accessories
- Servo motor provides brake, oil seal, and other optional configurations for different applications

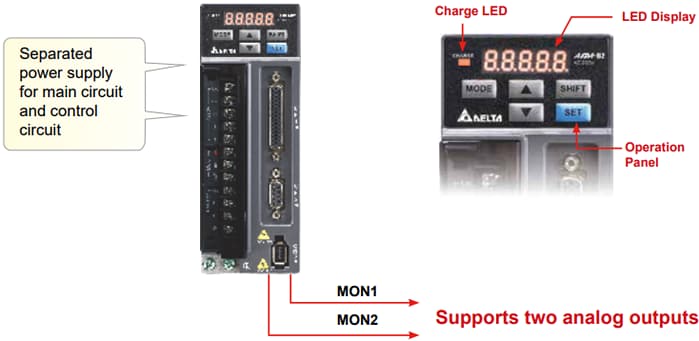

- Separated power supply for main circuit and control circuit for easier mechanism maintenance
- 400W or above servo drives have built-in regenerative resistors to simplify wiring and reduce installation cost
- Individual connectors (2 sets) for analog signal output to simplify wiring
3 control modes available: built-in position, speed, and torque (speed and torque mode can be controlled by internal parameters or analog voltage)
Meets UL, cUL, CE, and RoHS standards
