MSP430F6459IPZ

Name: Texas Instruments MSP430F6459IPZ
Brand: Texas Instruments
SKU: 595-MSP430F6459IPZ
Price: 9.07 GBP
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

595-MSP430F6459IPZ

Mfr. No:

MSP430F6459IPZ

Mfr.:

Texas Instruments

Description:

16-bit Microcontrollers - MCU Mixed Signal MCU A 5 95-MSP430F6459IPZR A 595-MSP430F6459IPZR

Datasheet:

MSP430F6459IPZ Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Texas Instruments MSP430F6459IPZ

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 18 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 90 Multiples: 90

Unit Price:

£-.--

Ext. Price:

£-.--

Est. Tariff:

This Product Ships FREE

Pricing (GBP)

Qty.	Unit Price	Ext. Price
	£9.07	£816.30
	£8.98	£2,424.60
	£8.91	£4,009.50
	£8.83	£7,947.00
2,700	Quote

Alternative Packaging

Mfr. Part No.:

MSP430F6459IPZR

Packaging:

Reel, Cut Tape, MouseReel

Availability:

In Stock

Price:

£10.65

Min:

Similar Product

Mfr.:

Texas Instruments

Mfr. No:

MSP430F6459IPZR

Description:

16-bit Microcontrollers - MCU Mixed Signal MCU A 5 95-MSP430F6459IPZ A 595-MSP430F6459IPZ

Compare With Current Part

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Texas Instruments
Product Category:	16-bit Microcontrollers - MCU
RoHS:
Core:	MSP430
Program Memory Size:	512 kB
Data RAM Size:	66 kB
Package/Case:	LQFP-100
Maximum Clock Frequency:	20 MHz
ADC Resolution:	12 bit
Number of I/Os:	74 I/O
Supply Voltage - Min:	1.8 V
Supply Voltage - Max:	3.6 V
Mounting Style:	SMD/SMT
Data Bus Width:	16 bit
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Series:	MSP430F6459
Packaging:	Tray
Brand:	Texas Instruments
Data RAM Type:	SRAM
Interface Type:	SPI, UART, USB
Moisture Sensitive:	Yes
Number of ADC Channels:	2 Channel
Processor Series:	MSP430F645x
Product Type:	16-bit Microcontrollers - MCU
Program Memory Type:	Flash
Factory Pack Quantity:	90
Subcategory:	Microcontrollers - MCU
Tradename:	MSP430
Watchdog Timers:	No Watchdog Timer
Unit Weight:	1.319 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

MSP430F6459IPZ Datasheet

Application Notes

Using the MSP430 RTC_B Module With Battery Backup Supply (Rev. B)

Images

Models

MSP430F6459IPZ Symbol & Footprint by SnapMagic

PCN

BSL Firmware change and the addition of TSMC-F10 (Fab 10) as a Wafer Fab site option for select devices (PDF)

This functionality requires JavaScript to be enabled.

CNHTS:: 8542319090
CAHTS:: 8542310000
USHTS:: 8542310020
JPHTS:: 854231032
KRHTS:: 8542311000
TARIC:: 8542319000
MXHTS:: 8542310302
ECCN:: EAR99

MSP430F6xx Series

Texas Instruments MSP430F6xx Series 16-bit MCUs feature low active power consumption with integrated USB connectivity and an LCD controller. The MSP430F6xx ultra-low-power MCUs provide designers with enhanced performance and increased design options with innovative peripherals on a chip that have more memory and integrated capabilities while using less power than ever before. The TI MSP430 ultralow power MCU family consists of several devices featuring different sets of peripherals targeted for various applications.

Processors

Texas Instruments Processors provide a comprehensive portfolio, proven software, and worldwide support, enabling industry-leading automotive and industrial solutions. TI is dedicated to advancing and optimizing today’s processors to meet tomorrow’s intelligence, performance, and cost requirements in automotive and industrial applications. Scalable hardware and software platforms with common code allow designers to seamlessly reuse and migrate across devices to protect future investment.

MSP430F5 & MSP430F6 Mixed-Signal Microcontrollers

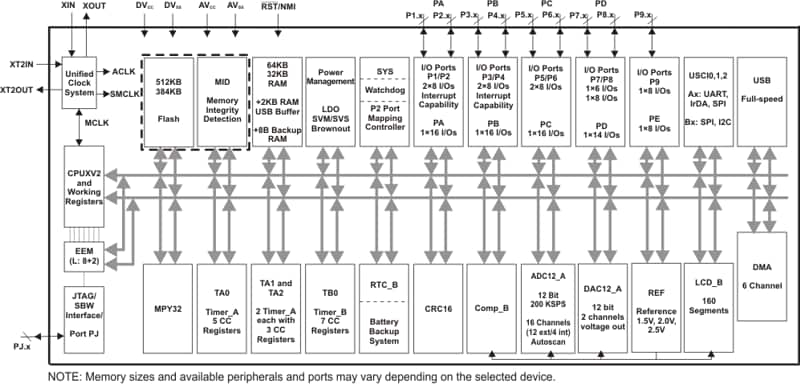

Texas Instruments MSP430F665x, MSP430F645x, MSP430F565x, MSP430F535x Mixed-Signal Microcontrollers consists of several devices that feature different sets of peripherals targeted for various applications. The MSP430F5/6 architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications.

MSP430™ Microcontrollers

Texas Instruments MSP430™ Family of Ultra-Low Power Microcontrollers (MCUs) includes several devices featuring different sets of peripherals for various applications. TI's MSP430 features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator allows wakeup from a low-power mode to active mode in less than 6µS. The MSP430 16-bit microcontroller platform of ultra-low power RISC mixed-signal microprocessors from Texas Instruments provides the ultimate solution for a wide range of low power and portable applications. TI provides robust design support for the MSP430 16-bit MCU, including technical documents, training, tools, and software.
