ZK6-3P-OR

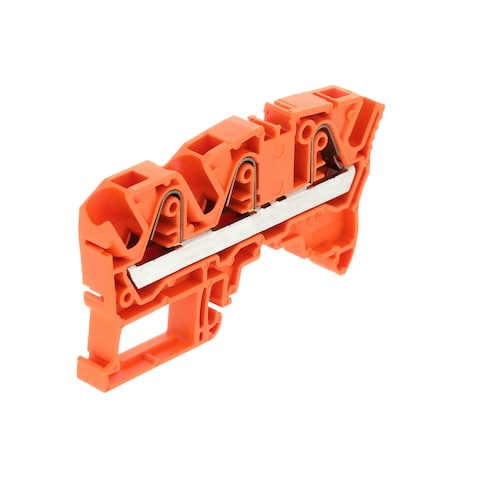

Name: TE Connectivity ZK6-3P-OR
Brand: TE Connectivity / AMP
SKU: 571-ZK6-3P-OR
Price: 5.78 GBP
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-ZK6-3P-OR

Mfr. No:

ZK6-3P-OR

Mfr.:

TE Connectivity / AMP

Description:

DIN Rail Terminal Blocks Aut SNK PI-Spring

Datasheet:

ZK6-3P-OR Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / AMP ZK6-3P-OR

In Stock: 16

Stock:: 16 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 10 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

£-.--

Ext. Price:

£-.--

Est. Tariff:

Pricing (GBP)

Qty.	Unit Price	Ext. Price
	£5.78	£5.78
	£4.10	£41.00
	£3.39	£84.75
	£2.60	£130.00
	£2.37	£1,185.00
	£2.36	£2,360.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	DIN Rail Terminal Blocks
RoHS:
Type:	Feed Through Terminal Block
Number of Positions:	3 Position
Pitch:	8 mm
Current Rating:	50 A
Voltage Rating:	600 V
Connection Method:	Spring Cage
Color:	Orange
Housing Material:	Polyamide (PA)
Mounting Style:	DIN Rail
Wire Gauge Min:	24 AWG
Wire Gauge Max:	8 AWG
Series:	SNK
Brand:	TE Connectivity / AMP
Product Type:	DIN Rail Terminal Blocks
Factory Pack Quantity:	50
Subcategory:	Terminal Blocks
Wire Gauge Range:	24 AWG to 8 AWG
Part # Aliases:	1SNK708031R0000

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

ZK6-3P-OR Datasheet

RoHS Certificate (PDF)

USHTS:: 8536904000
ECCN:: EAR99

ENTRELEC SNK PI-Spring Terminal Blocks

TE Connectivity's (TE) ENTRELEC SNK PI-Spring Terminal Blocks can be used as a push-in or traditional spring connection. Push-in mode allows direct one-step insertion of solid flexible standard wires with a ferrule, which is 50% faster than standard screw clamp technology. Using the spring mode, a screwdriver easily opens the spring clamp for wire insertion with no ferrule required. The screwdriver locks in the terminal block after insertion. TE ENTRELEC SNK PI-Spring Terminal Blocks offer a 20% larger marking area improving circuit identification and an asymmetrical design allowing an immediate visual check in case of reversed terminal blocks. Connection capacity ranges from 0.2mm² to 25mm² (26AWG to 4AWG).

ENTRELEC SNK Terminal Blocks & Accessories

TE Connectivity's (TE) ENTRELEC SNK Terminal Blocks offer a range of terminal blocks with PI-Spring (Push-in and Spring), screw clamp, and pluggable technologies with common accessories. An asymmetrical design avoids mounting and wiring errors. Most accessories can be shared by the various mounting technologies. TE ENTRELEC SNK components are qualified for worldwide applications and severe environments such as hazardous locations, railways, marine, and solar applications.
