4-640441-4

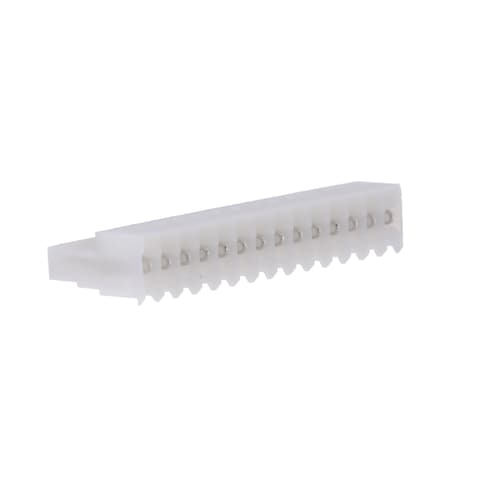

Name: TE Connectivity 4-640441-4
Brand: TE Connectivity / AMP
SKU: 571-46404414
Price: 1.61 GBP
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-46404414

Mfr. No:

4-640441-4

Mfr.:

TE Connectivity / AMP

Description:

Headers & Wire Housings 14P MTA100 CONN ASSY

Datasheet:

4-640441-4 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / AMP 4-640441-4

In Stock: 2,282

Stock:: 2,282 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 28 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

£-.--

Ext. Price:

£-.--

Est. Tariff:

Pricing (GBP)

Qty.	Unit Price	Ext. Price
	£1.61	£1.61
	£1.44	£14.40
	£1.40	£35.00
	£1.35	£67.50
	£1.28	£128.00
	£1.20	£300.00
	£1.17	£585.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Receptacle Housing
Number of Positions:	14 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	1 Row
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	IDC
Contact Gender:	Socket (Female)
Contact Plating:	Tin
Series:	MTA-100
Tradename:	MTA
Application:	Wire-to-Board
Wire Gauge:	24 AWG
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Bulk
Brand:	TE Connectivity / AMP
Contact Material:	Copper Alloy
Current Rating:	5 A
Housing Colour:	White
Housing Material:	Nylon
Latching Type:	Ramp Lock
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	250
Subcategory:	Headers & Wire Housings
Voltage Rating:	250 VAC
Unit Weight:	2.730 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

4-640441-4 Datasheet

Images

PCN

RoHS Certificate (PDF)

CNHTS:: 8536901100
TARIC:: 8536699099
CAHTS:: 8536690020
USHTS:: 8538906000
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

MTA Connector System

TE Connectivity's (TE) Mass Termination Assembly (MTA) Connector System is a wire-to-board and wire-to-wire system based on insulation displacement contact (IDC) technology. MTA 100 connectors have contacts in a single row on .100 inch (2.54mm) centers, while MTA 156 connector contacts are in a single row on .156 inch (3.96mm) centers. These connectors provide wire feed-through capability for daisy-chain applications. IDCs are used to terminate a range of conductor sizes. Ribbon cable can also be terminated when the appropriate receptacle assembly and strain relief cover are used. Header assemblies for board-mount applications include right-angle and vertical-mount products, which are available in through-hole and surface-mount configurations. TE MTA connectors are ideal for household appliances, fitness equipment, garage door openers, gasoline pumps, coin changers, and vending machines.
