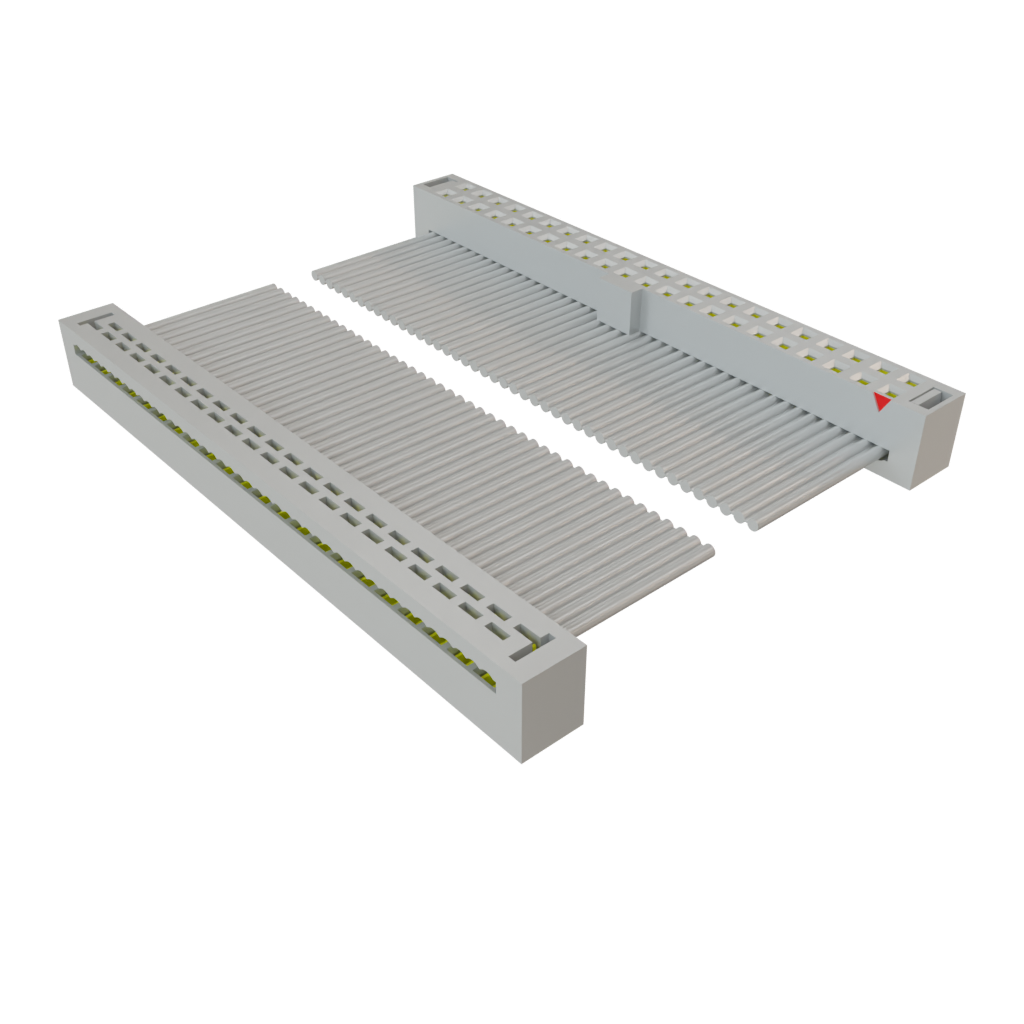

TCSD-22-D-09.00-01-N-R

Name: Samtec TCSD-22-D-09.00-01-N-R
Brand: Samtec
SKU: 200-TCSD22D090001NR
Price: 14.89 GBP
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

200-TCSD22D090001NR

Mfr. No:

TCSD-22-D-09.00-01-N-R

Mfr.:

Samtec

Description:

Ribbon Cables / IDC Cables IDC Socket Cable Assemblies

More Information

Learn more about Samtec TCSD-22-D-09.00-01-N-R

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

£-.--

Ext. Price:

£-.--

Est. Tariff:

Pricing (GBP)

Qty.	Unit Price	Ext. Price
	£14.89	£14.89
	£14.11	£141.10
	£13.29	£332.25
	£12.40	£620.00
	£11.61	£1,161.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Ribbon Cables / IDC Cables
RoHS:
Type:	IDC Socket Cable
Connector End A:	Socket
Connector End A Pin Count:	44 Position
Connector End B:	Socket
Connector End B Pin Count:	44 Position
Pitch:	2 mm
Gender:	Female / Female
Cable Length:	228.6 mm
Wire Gauge - AWG:	28 AWG
Series:	TCSD
Packaging:	Bulk
Brand:	Samtec
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CR
Current Rating:	2.8 A
Description/Function:	High Reliability IDC Socket Strip
Jacket Colour:	Gray
Jacket Material:	Polyvinyl Chloride (PVC)
Product:	IDC Ribbon Cable Assemblies
Product Type:	Ribbon Cables / IDC Cables
Factory Pack Quantity:	1
Subcategory:	Cable Assemblies
Tradename:	Tiger Eye IDC

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

USHTS:: 8544429090
TARIC:: 8544429090
ECCN:: EAR99

TCSD/TCMD Tiger Eye™ IDC Cable Assemblies

Samtec TCSD/TCMD Tiger Eye™ IDC Cable Assemblies offer a 2.00mm (.0787") pitch connection that operates in a -40°C to +105°C temperature range. The rugged IDC cable assemblies feature high-performance Tiger Eye contacts with socket (TCSD) or plug (TCMD) terminations. The cable assemblies are 28AWG 7/36 stranded wire with options for single-end, double-end, or transfer-end (TCMD only). Strain relief options are also available.
