TCMD-05-T-40.00-01-N-R

Name: Samtec TCMD-05-T-40.00-01-N-R
Brand: Samtec
SKU: 200-TCMD05T40.0001NR
Price: 9.9 GBP
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-TCMD05T40.0001NR

Mfr. No:

TCMD-05-T-40.00-01-N-R

Mfr.:

Samtec

Description:

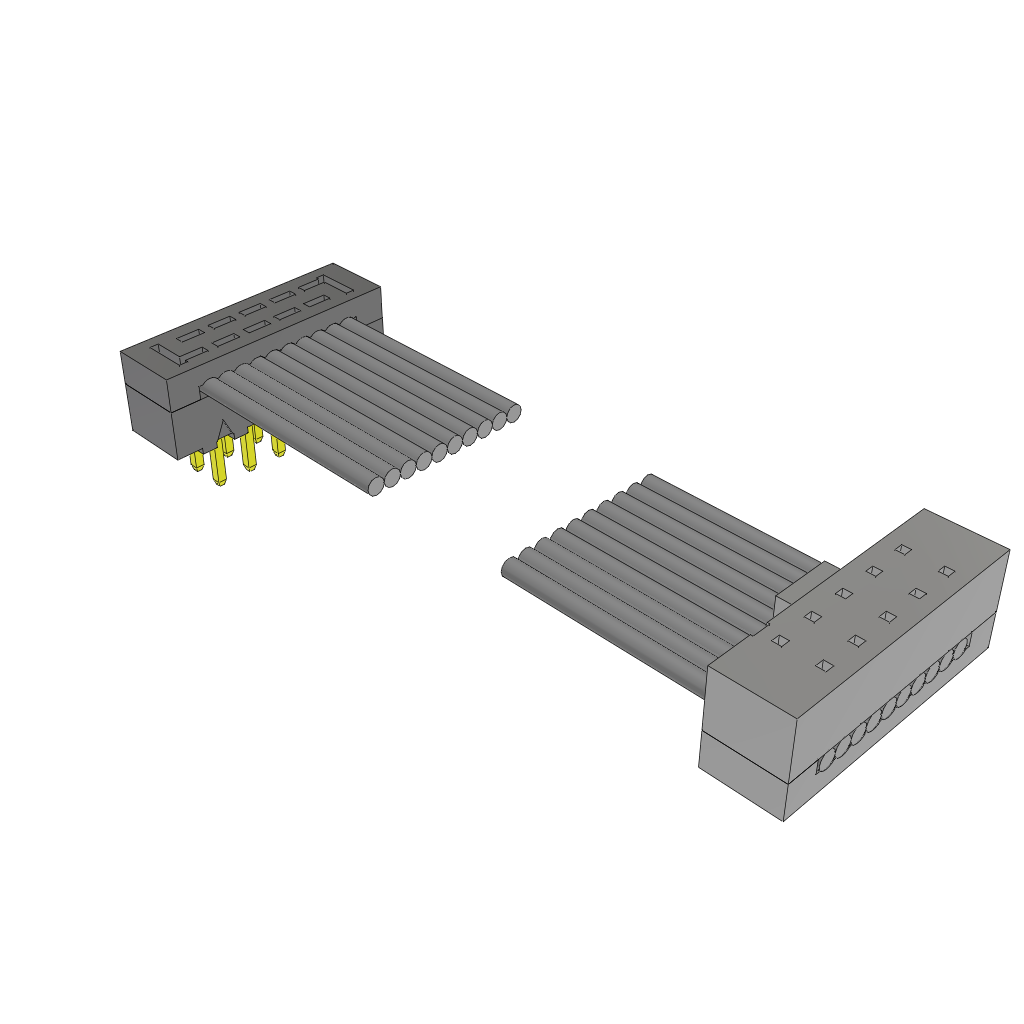

Ribbon Cables / IDC Cables 2.00 mm IDC Ribbon Cable Assembly

More Information

Learn more about Samtec TCMD-05-T-40.00-01-N-R

In Stock: 4

Stock:: 4 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 3 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

£-.--

Ext. Price:

£-.--

Est. Tariff:

Pricing (GBP)

Qty.	Unit Price	Ext. Price
	£9.90	£9.90
	£9.38	£93.80
	£8.83	£220.75
	£8.24	£412.00
	£7.87	£787.00
	£7.71	£1,927.50

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Ribbon Cables / IDC Cables
RoHS:
Type:	IDC Header Cable
Connector End A:	Plug
Connector End A Pin Count:	10 Position
Connector End B:	IDC Socket
Connector End B Pin Count:	10 Position
Pitch:	2 mm
Gender:	Male / Female
Cable Length:	1.016 m
Wire Gauge - AWG:	28 AWG
Series:	TCMD
Packaging:	Bulk
Brand:	Samtec
Current Rating:	2.6 A
Jacket Colour:	Gray
Jacket Material:	Polyvinyl Chloride (PVC)
Product:	IDC Ribbon Cable Assemblies
Product Type:	Ribbon Cables / IDC Cables
Factory Pack Quantity:	1
Subcategory:	Cable Assemblies
Tradename:	Tiger Eye IDC
Unit Weight:	60 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

CAHTS:: 8544420090
USHTS:: 8544429090
JPHTS:: 854442099
KRHTS:: 8544422090
TARIC:: 8544429090
MXHTS:: 8544429999
BRHTS:: 85444200
ECCN:: EAR99

TCSD/TCMD Tiger Eye™ IDC Cable Assemblies

Samtec TCSD/TCMD Tiger Eye™ IDC Cable Assemblies offer a 2.00mm (.0787") pitch connection that operates in a -40°C to +105°C temperature range. The rugged IDC cable assemblies feature high-performance Tiger Eye contacts with socket (TCSD) or plug (TCMD) terminations. The cable assemblies are 28AWG 7/36 stranded wire with options for single-end, double-end, or transfer-end (TCMD only). Strain relief options are also available.
