SSQ-150-01-G-D

Name: Samtec SSQ-150-01-G-D
Brand: Samtec
SKU: 200-SSQ15001GD
Price: 8.79 GBP
Availability: InStock

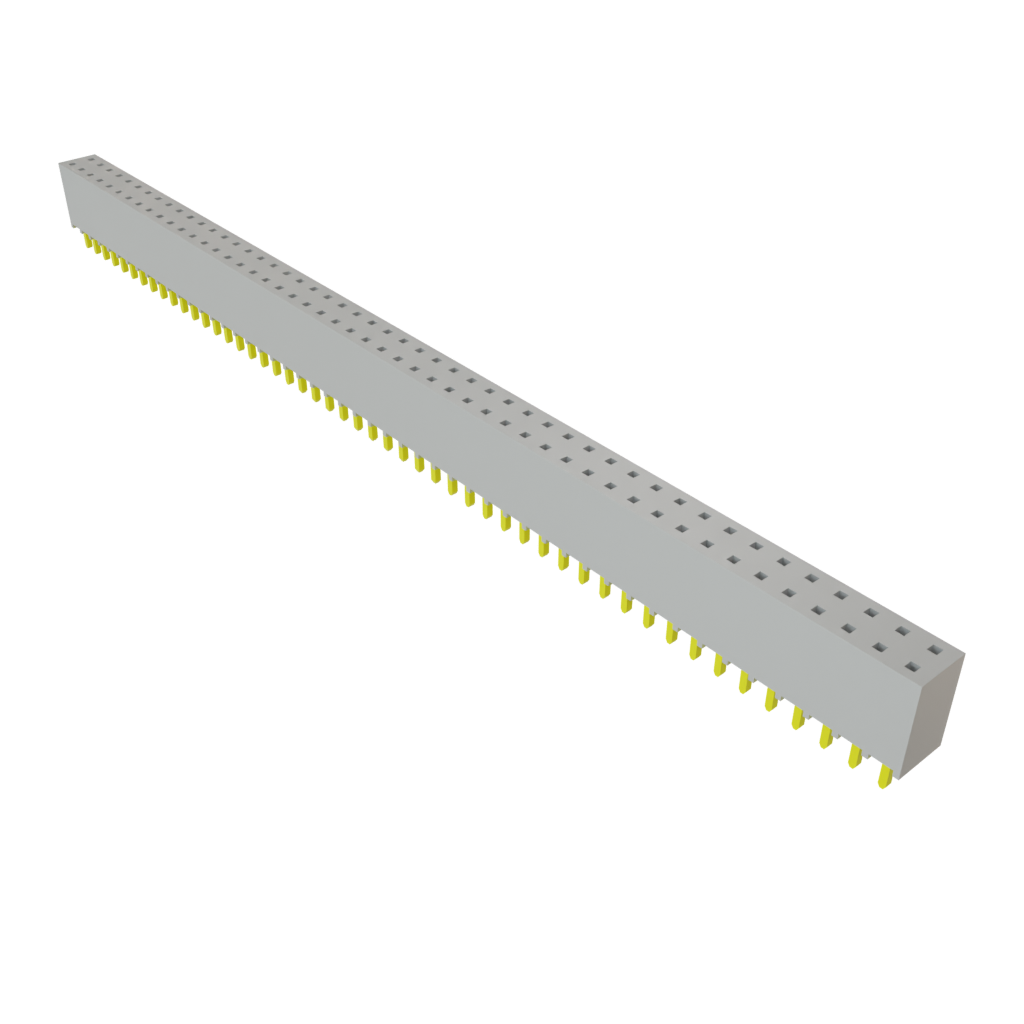

Images are for reference only
See Product Specifications

Mouser No:

200-SSQ15001GD

Mfr. No:

SSQ-150-01-G-D

Mfr.:

Samtec
Samtec

Description:

Headers & Wire Housings Tiger Buy Socket Strip with Square Tails

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SSQ-150-01-G-D

In Stock: 15

Stock:: 15 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

£-.--

Ext. Price:

£-.--

Est. Tariff:

Pricing (GBP)

Qty.	Unit Price	Ext. Price
	£8.79	£8.79
	£8.21	£82.10
	£7.75	£193.75
	£7.48	£374.00
	£6.89	£689.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Headers & Wire Housings
RoHS:
Product:	Sockets
Type:	Socket
Number of Positions:	100 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Row Spacing:	2.54 mm (0.1 in)
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Straight
Contact Plating:	Gold
Series:	SSQ
Tradename:	Tiger Buy
Application:	Board-to-Board, Cable
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Packaging:	Bulk
Brand:	Samtec
Contact Material:	Phosphor Bronze
Current Rating:	6.3 A
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Gender:	Socket
Housing Material:	Liquid Crystal Polymer (LCP)
Latching Type:	Unlatched
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	1
Subcategory:	Headers & Wire Housings
Voltage Rating:	465 VAC, 655 VDC
Unit Weight:	6.183 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images


Models

SSQ-150-01-G-D Symbol & Footprint by SnapMagic

Specification Sheets

Technical Resources

Test Report (PDF)

CNHTS:: 8536901900
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

SSQ 0.100" Square Tailed Tiger Buy™ Socket Strips

Samtec SSQ 0.100" Pitch Square Tailed Tiger Buy™ Socket Strips are printed circuit board socket strips with high retention and cost-effective Tiger Buy contacts. The RoHS compliant SSQ components feature a square pin for through-hole applications. This makes them ideal for new designs and retrofit applications.
