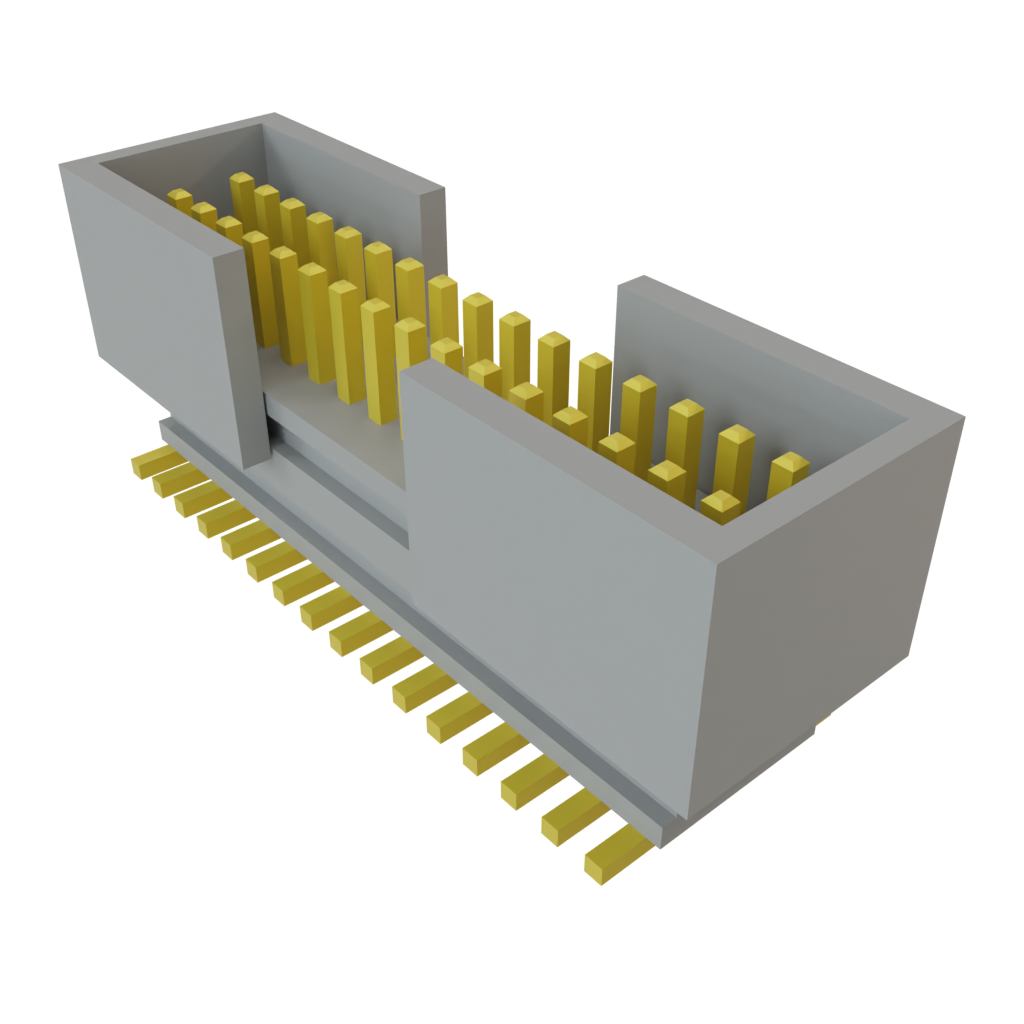

AW-16-03-G-D-122-075-ES

Name: Samtec AW-16-03-G-D-122-075-ES
Brand: Samtec
SKU: 200-AW1603GD122075ES
Price: 6.59 GBP
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-AW1603GD122075ES

Mfr. No:

AW-16-03-G-D-122-075-ES

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors 0.80 mm Flex Stack

Datasheet:

AW-16-03-G-D-122-075-ES Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 103

Stock:: 103 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 5 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

£-.--

Ext. Price:

£-.--

Est. Tariff:

Pricing (GBP)

Qty.	Unit Price	Ext. Price
	£6.59	£6.59
	£6.09	£60.90
	£5.76	£144.00
	£5.45	£654.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Headers
Number of Positions:	32 Position
Pitch:	0.8 mm (0.031 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Stack Height:	3.0988 mm
Current Rating:	2.2 A
Voltage Rating:	210 VAC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	AW
Packaging:	Tube
Application:	Board to Board
Brand:	Samtec
Insulation Resistance:	5 GOhms
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	40
Subcategory:	Board to Board & Mezzanine Connectors
Termination Post Length:	1.905 mm
Tradename:	Flex Stack
Unit Weight:	61.690 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

AW-16-03-G-D-122-075-ES Datasheet (PDF)

Images


Specification Sheets

Technical Resources

Test Report (PDF)

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).
