XG5N-341

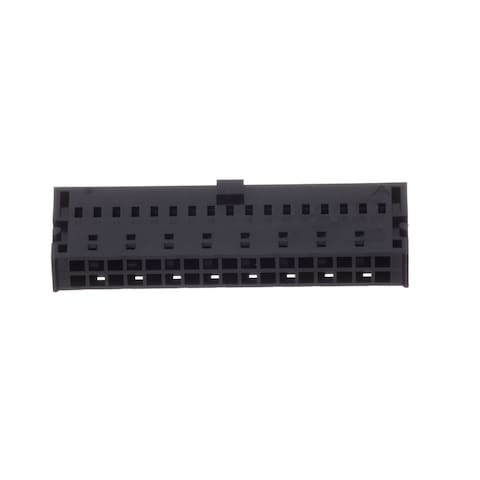

Name: Omron XG5N-341
Brand: Omron Electronics
SKU: 653-XG5N-341
Price: 1.84 GBP
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

653-XG5N-341

Mfr. No:

XG5N-341

Mfr.:

Omron Electronics

Description:

Headers & Wire Housings CrimpSocket Discrete 2Row 34P 1PolarizeG

Datasheet:

XG5N-341 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Omron Electronics XG5N-341

In Stock: 275

Stock:: 275 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 26 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

£-.--

Ext. Price:

£-.--

Est. Tariff:

Pricing (GBP)

Qty.	Unit Price	Ext. Price
	£1.84	£1.84
	£1.43	£14.30
	£1.21	£24.20
	£1.19	£59.50
	£1.05	£105.00
	£1.03	£515.00
	£1.02	£1,020.00
	£0.925	£1,850.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Omron
Product Category:	Headers & Wire Housings
RoHS:
Product:	Wire Housings
Type:	Socket Assembly
Number of Positions:	34 Position
Pitch:	2.54 mm (0.1 in)
Number of Rows:	2 Row
Row Spacing:	2.54 mm (0.1 in)
Mounting Style:	Cable Mount / Free Hanging
Termination Style:	Crimp
Contact Gender:	Socket (Female)
Contact Plating:	Gold
Series:	XG5N
Application:	Wire-to-Board
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 105 C
Brand:	Omron Electronics
Contact Material:	Phosphor Bronze
Flammability Rating:	UL 94 V-2
Housing Colour:	Black
Housing Gender:	Socket
Housing Material:	Polybutylene Terephthalate (PBT)
Insulation Resistance:	1 GOhms
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	100
Subcategory:	Headers & Wire Housings
Voltage Rating:	250 V
Part # Aliases:	XG5N341

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

XG5N-341 Datasheet (PDF)

This functionality requires JavaScript to be enabled.

CNHTS:: 8547200000
CAHTS:: 8536690020
USHTS:: 8538906000
JPHTS:: 853669000
KRHTS:: 8536699000
TARIC:: 8536699099
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

XG5N & XG5N-U MIL Connector Sockets

Omron Electronics XG5N/XG5N-U MIL Connector Sockets for Discrete Wires feature a unique lock lever that enables one-hand insertion with secure locking. Using the lock-lever system, these connectors can be locked to either the XG8B/XG8W unshrouded plugs (with right-angle terminals) or XG4C box-type plugs. The two-slot, IDC construction and insulation barrel offer high reliability and large-current (3A) discrete wiring capability. XG5N/XG5N-U MIL Connector Sockets save up to 24% of board space with the XG4C box plug (as compared to the standard XG4A plug), and are adaptable to a variety of covers for space-saving and discrete wire termination.
