XG4M-6030-T

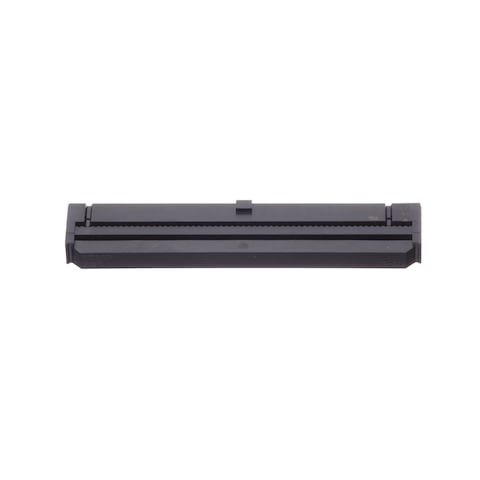

Name: Omron XG4M-6030-T
Brand: Omron Electronics
SKU: 653-XG4M-6030-T
Price: 3.75 GBP
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

653-XG4M-6030-T

Mfr. No:

XG4M-6030-T

Mfr.:

Omron Electronics

Description:

Rectangular Mil Spec Connectors Socket+StrainRelief Set 60Pin 1Polar

Datasheet:

XG4M-6030-T Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Omron Electronics XG4M-6030-T

In Stock: 147

Stock:: 147 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 26 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

£-.--

Ext. Price:

£-.--

Est. Tariff:

Pricing (GBP)

Qty.	Unit Price	Ext. Price
	£3.75	£3.75
	£3.20	£32.00
	£2.95	£88.50
	£2.81	£168.60
	£2.67	£320.40
	£2.52	£680.40
	£2.41	£1,229.10
	£2.37	£2,417.40
	£2.16	£5,443.20

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Omron
Product Category:	Rectangular Mil Spec Connectors
RoHS:
Product:	Flat Cable Connectors
Number of Positions:	60 Position
Number of Rows:	2 Row
Termination Style:	IDC
Mounting Style:	Cable Mount / Free Hanging
Contact Gender:	Socket (Female)
Contact Plating:	Gold
MIL Type:	MIL-C-83503
Series:	XG4
Mounting Angle:	Straight
Brand:	Omron Electronics
Contact Material:	Phosphor Bronze
Current Rating:	1 A
Housing Material:	Polybutylene Terephthalate (PBT)
Insulation Resistance:	1 GOhms
Maximum Operating Temperature:	+ 105 C
Minimum Operating Temperature:	- 55 C
Pitch:	2.54 mm
Product Type:	Rectangular MIL Spec Connectors
Factory Pack Quantity:	30
Subcategory:	MIL-Spec / MIL-Type
Voltage Rating:	250 V
Part # Aliases:	XG4M6030TBYOMZ
Unit Weight:	15.245 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

XG4M-6030-T Datasheet (PDF)

PCN

Product Change Notification (PDF)

This functionality requires JavaScript to be enabled.

CNHTS:: 8536901100
CAHTS:: 8536690090
USHTS:: 8536694051
JPHTS:: 853669000
KRHTS:: 8536699000
TARIC:: 8536699099
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

PV Inverter Solutions

Omron Electronics provides electronic components for applications in PV inverters. For PV inverters in residential environments, Omron offers relays that feature rapid shutdown systems, ground fault detection, DC disconnect, and DC discharge and inrush protection. Additionally, for PV inverters for industrial environments, there are relays for DC discharge, AC disconnect, and ground fault detection.

XG4 Flat Cable Connectors

Omron Electronics XG4 Flat Cable Connectors are industry-standard circuit board connectors that conform to MIL standards. XG4M-U connectors feature lock levers on the strain relief/socket instead of on the plug, saving 24% of space. The XG4C space-saving box-type plugs are also available. Omron XG4 Flat Cable Connectors can be used with XG5 IDC connectors for discrete wires, XG8 original PCB plugs, and XG2 IDC bus connectors for PCBs. The original PCB plugs (XG8) and box-type plugs (XG4C) can be locked using external XG5Z and XG4Z lock levers.
