91999-0502

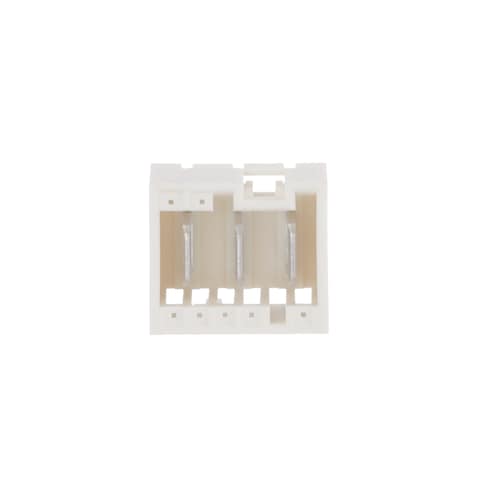

Name: Molex 91999-0502
Brand: Molex
SKU: 538-91999-0502
Price: 0.47 GBP
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-91999-0502

Mfr. No:

91999-0502

Mfr.:

Molex

Description:

Power to the Board RAST 5 VERTICAL HDR 3 CKT SN

Datasheet:

91999-0502 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 217

Stock:: 217 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

£-.--

Ext. Price:

£-.--

Est. Tariff:

Pricing (GBP)

Qty.	Unit Price	Ext. Price
	£0.473	£0.47
	£0.409	£4.09
	£0.374	£9.35
	£0.337	£33.70
	£0.271	£67.75
	£0.21	£157.50
	£0.208	£624.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	Power to the Board
RoHS:
Product Type:	Power to the Board
Current Rating:	16 A
Voltage Rating:	250 VAC
Number of Positions:	3 Position
Mounting Style:	Through Hole
Termination Style:	Through Hole
Pitch:	5 mm
Series:	91999
Tradename:	RAST 5.0
Brand:	Molex
Contact Material:	Brass
Contact Plating:	Tin
Housing Material:	Nylon
Maximum Operating Temperature:	+ 120 C
Minimum Operating Temperature:	- 20 C
Mounting Angle:	Vertical
Number of Rows:	1 Row
Factory Pack Quantity:	750
Subcategory:	Power Connectors
Part # Aliases:	919990502 0919990502

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

91999-0502 Datasheet (PDF)

RoHS Certificate (PDF)

CNHTS:: 8536901900
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

RAST Power Connectors

Molex RAST Power Connectors include glow-wire compatible RAST 5, RAST 2.5, and RAST power connector systems that carry up to 16A. The connectors offer reliable power connections in small packages ideal for home appliance wiring harnesses. Available in two to 12 circuits, this connector series carries a maximum of 6.0A with tin plating and 10.0A with silver plating. Molex RAST Power Connectors are designed to mate directly to the PCB or with standard RAST headers on a 5.00mm pitch. Multiple keying and coding options, polarizing rib options, and open or closed-end walls are available. Housings, molded from a Glow-Wire compliant material, meet all relevant European safety requirements of IEC-60335-1 4th Edition specification.
