ABP2DANG015PDSA3XX

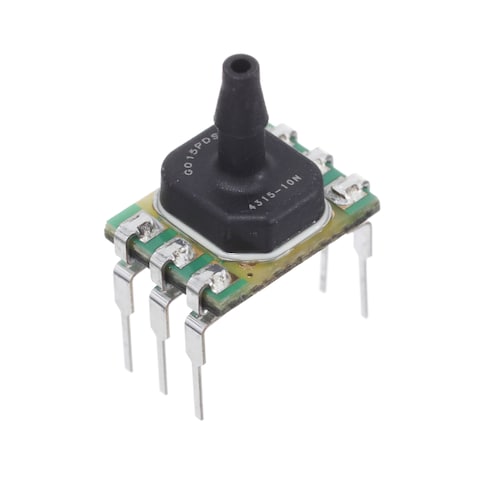

Name: Honeywell ABP2DANG015PDSA3XX
Brand: Honeywell
SKU: 785-P2DANG015PDSA3XX
Price: 26.16 GBP
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

785-P2DANG015PDSA3XX

Mfr. No:

ABP2DANG015PDSA3XX

Mfr.:

Honeywell

Description:

Board Mount Pressure Sensors ABP2, DIP, AN port

Datasheet:

ABP2DANG015PDSA3XX Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Honeywell ABP2DANG015PDSA3XX

In Stock: 70

Stock:: 70 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 12 Weeks Estimated factory production time for quantities greater than shown.

Long lead time reported on this product.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

£-.--

Ext. Price:

£-.--

Est. Tariff:

Pricing (GBP)

Qty.	Unit Price	Ext. Price
	£26.16	£26.16
	£22.06	£110.30
	£20.51	£205.10
	£18.61	£465.25
	£17.29	£864.50
	£16.79	£1,611.84

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Honeywell
Product Category:	Board Mount Pressure Sensors
Pressure Type:	Differential
Operating Pressure:	15 psi
Accuracy:	0.25 %
Output Type:	Digital
Mounting Style:	Through Hole
Interface Type:	SPI
Operating Supply Voltage:	3.3 V
Port Type:	Single Axial Barbed
Resolution:	14 bit
Package/Case:	DIP-6
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 110 C
Brand:	Honeywell
Port Size:	2.74 mm
Product Type:	Board Mount Pressure Sensors
Factory Pack Quantity:	32
Subcategory:	Sensors
Supply Voltage - Max:	3.6 V
Supply Voltage - Min:	1.8 V

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

ABP2DANG015PDSA3XX Datasheet (PDF)

This functionality requires JavaScript to be enabled.

CAHTS:: 9026200010
USHTS:: 9026204000
JPHTS:: 902620010
TARIC:: 9026208090
ECCN:: EAR99

Pressure Sensors

Honeywell Pressure Sensors offer measurement solutions with a complete lineup of board-mount and heavy-duty sensors. These sensors are easily configurable and available in a wide range of ports, connectors, outputs, and pressure ranges. Honeywell Pressure Sensors are suitable for basic or complex applications, delivering enhanced precision, repeatability, and ruggedness.

Electronic Sensors

Honeywell Sensing and Control offers electronic sensors for any type of physical phenomenon that needs to be detected or measured. Honeywell's portfolio includes temperature, pressure, force, current, humidity, magnetic, motion and position sensors. The sensors provide a corresponding output, usually in the form of an electronic signal.

ABP2 Board-Mount Pressure Sensors

Honeywell ABP2 Board-Mount Pressure Sensors offer a digital output for reading pressure over the specified full-scale pressure span (2.5mbar to 12bar/250Pa to 1.2MPa / 1inH₂O to 175psi) and temperature range (-40°C to 110°C). These piezoresistive silicon pressure sensors are calibrated and temperature compensated for sensor offset, temperature effects, sensitivity, and accuracy errors via an onboard ASIC. The calibrated output values for pressure and temperature are updated at approximately 200Hz. The ABP2 Board-Mount Pressure Sensors are designed and manufactured according to ISO 9001 standards. The liquid-media option includes an additional silicone-based gel coating to protect the electronics under port P1.
