B65878E0012D001

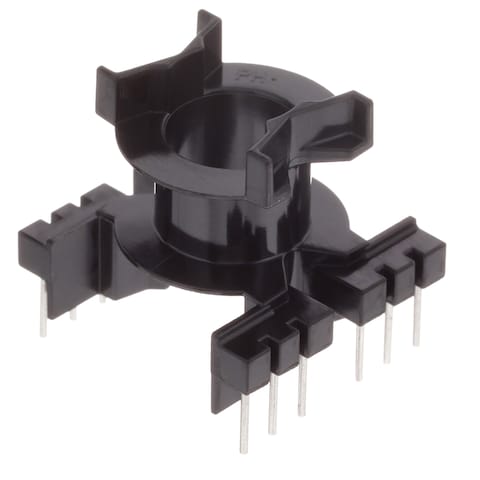

Name: TDK B65878E0012D001
Brand: EPCOS / TDK
SKU: 871-B65878E0012D001
Price: 1.16 GBP
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

871-B65878E0012D001

Mfr. No:

B65878E0012D001

Mfr.:

EPCOS / TDK

Description:

Ferrite Cores & Accessories COIL FORMER PQ26/20

Datasheet:

B65878E0012D001 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about EPCOS / TDK B65878E0012D001

In Stock: 727

Stock:: 727 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 29 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

£-.--

Ext. Price:

£-.--

Est. Tariff:

Pricing (GBP)

Qty.	Unit Price	Ext. Price
	£1.16	£1.16
	£0.811	£8.11
	£0.694	£17.35
	£0.614	£30.70
	£0.475	£102.60

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TDK
Product Category:	Ferrite Cores & Accessories
RoHS:
Series:	PQ26/20
Product:	Hardware & Accessories
Type:	Ungapped
Core:	PQ Core
Core Size:	PQ 26 x 25
Accessory Type:	Coil Former
Number of Pins:	12 Pin
Core Material:	GFR Thermosetting Plastic
Termination Style:	Pin
Packaging:	Tray
Brand:	EPCOS / TDK
Inside Height:	9 mm
Lead Diameter:	0.8 mm
Lead Spacing:	3.81 mm
Maximum DC Resistance:	58 uOhms
Outside Height:	24.9 mm
Outside Length:	29.3 mm
Outside Width:	26.5 mm
Product Type:	Ferrite Cores & Accessories
Factory Pack Quantity:	216
Subcategory:	Ferrites
Part # Aliases:	B65878E12D1
Unit Weight:	20 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

CNHTS:: 8547200000
USHTS:: 8504909610
JPHTS:: 850490000
KRHTS:: 8504909000
TARIC:: 8504901100
MXHTS:: 8504909901
ECCN:: EAR99

Ferrite Cores & Accessories

EPCOS / TDK Ferrite Cores and Accessories feature polycrystal, sintered material construction with high electrical resistivity and distributed air gaps. These ferrites are ideal for transportation equipment and medical devices. Ferrite cores include E core, ETD core, PM core, U core, PS core, RM core, EFD core, and more. A wide variety of accessories is also available.
