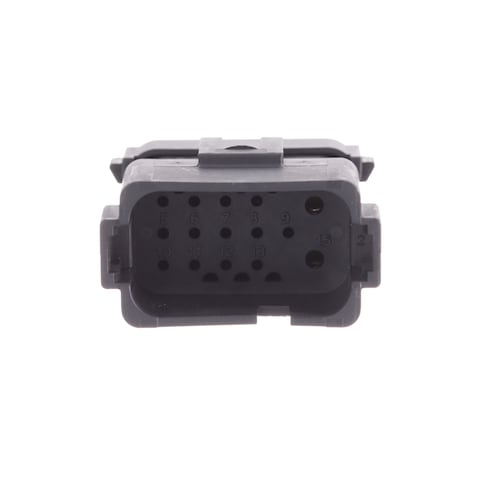

AT16-15PB-K003

Name: Amphenol AT16-15PB-K003
Brand: Amphenol SINE Systems
SKU: 654-AT16-15PB-K003
Price: 9.31 GBP
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

654-AT16-15PB-K003

Mfr. No:

AT16-15PB-K003

Mfr.:

Amphenol SINE Systems

Description:

Automotive Connectors 15 Position Receptacle, Pin, Keyed B, End Cap, Reduced Diameter Seal, Black

Datasheet:

AT16-15PB-K003 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol SINE Systems AT16-15PB-K003

In Stock: 56

Stock:: 56 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 16 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

£-.--

Ext. Price:

£-.--

Est. Tariff:

Pricing (GBP)

Qty.	Unit Price	Ext. Price
	£9.31	£9.31
	£7.91	£79.10
	£7.41	£148.20
	£7.05	£352.50
	£6.37	£637.00
	£6.11	£1,222.00
	£5.89	£2,945.00
	£5.79	£5,790.00

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Automotive Connectors
RoHS:
Product:	Connectors
Number of Positions:	15 Position
Gender:	Receptacle (Female)
Color:	Black
Series:	AT
Packaging:	Bulk
Brand:	Amphenol SINE Systems
Current Rating:	13 A
Housing Material:	Thermoplastic (TP)
Insulation Resistance:	1 Ohms
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Product Type:	Automotive Connectors
Factory Pack Quantity:	100
Subcategory:	Automotive Connectors
Tradename:	AT Series

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

This functionality requires JavaScript to be enabled.

CAHTS:: 8536690090
USHTS:: 8536698000
JPHTS:: 853669000
KRHTS:: 8536699000
TARIC:: 8536699099
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

AT Series 15-Position Thermoplastic Connectors

Amphenol Sine Systems AT Series 15-Position Thermoplastic Connectors are available in 13 x size 16 contacts or 2 x size 12 contacts configuration. The plug and receptacle housings are pre-assembled with internal rear seals and covers while the connectors feature an integrated latch for mating that ensures a definitive electrical and mechanical connection. These connectors are compatible with existing standard products industry-wide and have superior front and rear environmental seals that provide a multi-sealing perimeter against environmental ingress. Amphenol AT Series 15-Position Thermoplastic Connectors offer an IP rating of IP68/69K (in mated condition), 25A current rating for size 12 contacts and 13A current rating for size 16 contacts, and a -55°C to +125°C operating temperature range.

BoardLock™ Connectors

Amphenol Sine Systems BoardLock™ connector family combines flanged or flangeless, 180° straight or 90° right-angle pin-oriented, wire-to-board versatility with the proven reliability of the A Series™. The A Series is an environmentally sealed thermoplastic connection system with a maximum current rating up to 100A. Featuring a compact, durable, low-profile, and lightweight design, this connector family is perfect for power or data signal applications. All BoardLock product lines accept A Series components and are comparable with other industry-standard mating connectors.
