AT12P-BT

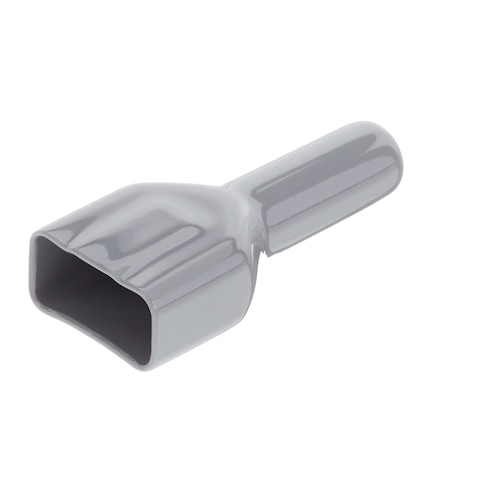

Name: Amphenol AT12P-BT
Brand: Amphenol SINE Systems
SKU: 654-AT12P-BT
Price: 1.05 GBP
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

654-AT12P-BT

Mfr. No:

AT12P-BT

Mfr.:

Amphenol SINE Systems

Description:

Automotive Connectors Boot (Backshell) 12way Receptacle Gry

Datasheet:

AT12P-BT Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol SINE Systems AT12P-BT

In Stock: 63

Stock:: 63

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 200

Expected 18/05/2026
Factory Lead Time:: 16

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

£-.--

Ext. Price:

£-.--

Est. Tariff:

Pricing (GBP)

Qty.	Unit Price	Ext. Price
	£1.05	£1.05
	£0.882	£8.82
	£0.834	£20.85
	£0.796	£39.80
	£0.742	£148.40
	£0.733	£439.80

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Automotive Connectors
RoHS:
Product:	Accessories
Accessory Type:	Backshell
Number of Positions:	12 Position
Gender:	Receptacle (Female)
Color:	Gray
Packaging:	Bulk
Application:	12-Way Receptacle
Brand:	Amphenol SINE Systems
Dimensions:	83.6 mm x 35.2 mm x 21.3 mm
Height:	21.3 mm
Length:	83.6 mm
Material:	Polyvinyl Chloride (PVC)
Mating Gender:	Receptacle
Mating Part Number:	AT04-12P
Maximum Operating Temperature:	+ 100 C
Minimum Operating Temperature:	- 29 C
Mounting Angle:	Straight
Product Type:	Automotive Connectors
Factory Pack Quantity:	200
Subcategory:	Automotive Connectors
Width:	35.2 mm

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

AT12P-BT Datasheet (PDF)

Models

3D CAD Model

Product Catalogs

This functionality requires JavaScript to be enabled.

USHTS:: 8538908180
TARIC:: 3926909790
ECCN:: EAR99

A Series™ Connectors

Amphenol Sine Systems A Series™ family of sealed, heavy-duty, multi-pin plastic and metal connectors is made up of 20+ core product lines. The connectors within this family have been developed as a high-performance, cost-effective solution for use with heavy equipment, agricultural, automotive, military, alternate energy, and other demanding interconnect architectures. The A Series Family bridges the gap between controlled and harsh environmental conditions to keep users connected.

AT Protective Backshell Boots

Amphenol Sine Systems AT Series™ Boots provide an optional protective backshell covering for harsh environmental and industrial applications in a -28°C to +100°C temperature range. These 2- to 12-position boots are designed for use with AT, ATM, and ATP Series™ connectors that do not include an endcap or shrink boot strain relief. Amphenol Sine Systems A Series™ Boots are made of high-quality plastisol in three color options: yellow, black, and gray. Typical applications include heavy equipment, construction, transportation, off-road mining, industrial, railway, automotive, and more.
